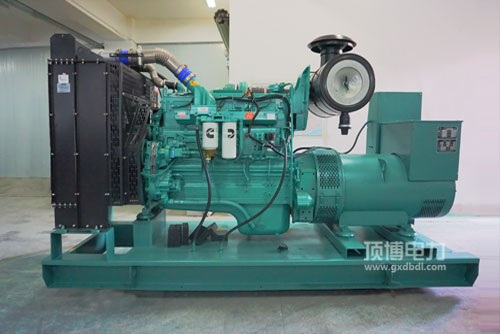

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机气油区域性价比好: 最先进的气油操作操作系统化，才有的STC、ESTC 分级a操作操作系统化，特殊的设计的概念的活塞杆表层进行汽缸，高压低压输送气油，彻底的做雾化，进行然烧彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态性能参数非常好的: 完美无缺的打火机总布局设计制作，加上康明斯差异化的的EFC体统，调节gps精性高，运行时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用汽车发行为升功效高: 总体制作紧凑型轿车.外观安装合理安排，行驶市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50需要满足中国人非路段第四时期及北美地区Tier2. Tier 3排放物条例需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件应得性好， 打着机运作及系统维护的保养快速，总成本以及消耗低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率时间范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯并网发电用打火机的特质：体积大小小， 减少变高， 防雨百叶环境电加热，有利运行，移动端车载式电原的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机应用	通常用马力(kW)Prime Power	备品工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
